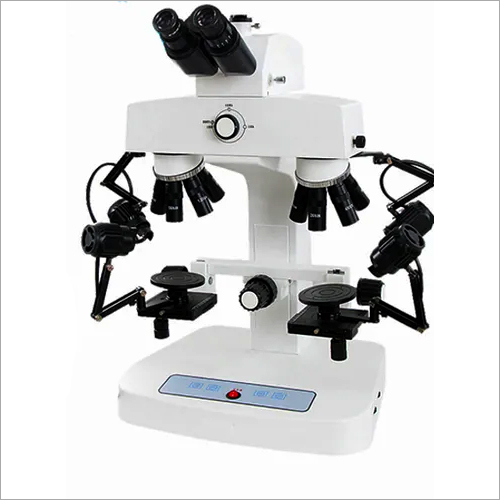

FORENSIC COMPARISON MICROSCOPE

About FORENSIC COMPARISON MICROSCOPE

 Binocular Head , inclined at 30 degree, interpupillary distance 48-75 mm, diopter +-5 adjustable.

 Eyepiece

 *   WF 10x/22 mm, High Eyepoint

*   WF 20x/22 mm,  High Eyepoint.

 LWF Infinity Plan Achromatic Objective  0.5m, 1x, 1.5x, 2x , 4x, 6x, Auxiliary Lens 0.4x, 2.0x.

2x ~ 240x.

 6 Hole click Stop Nosepiece

 Dia 2.3~62 mm.

 Standard bullet Holder 2 sets, Bullet Holder set for all kind for bullet, catridge and objects.

 *  12V 50W Fan cooling strong halogen light, brightness adjustable 2 pcs

*  5W LED Lens, high brightness adjustable 2 pcs.

*  Coaxial light lens, to observe in deep hole, or smooth abject surface 2 pcs.

*   Polarizing light lens, to eliminate flare light and sazzling lights 2 pcs.

*  Ultra violet Light lens 2 pcs.

*  Filter - Red, Blue, Green, 2 pcs each color.

 Power

 80-240V, wide range voltage.

*  Square Manual working stage  90x90 mm, moving range 54x45x45 mm.

*  Round titable working stage dia 90 mm, 0-45 degree inclined, 360 degree rotatable.

*  Joint Left/Right moving range 54 mm, joint up/down range 60 mm.

 Separation line Adjustable

Separation line adjustablesystem in back,. with special design driver.

101 mm.

 Magnification correction system, with correcting lens.

 Instrument Size 43x34x65 mm.
